多通道臨床及研究用攜帶式放大器系統(Mobi)
多通道臨床及研究用攜帶式放大器系統

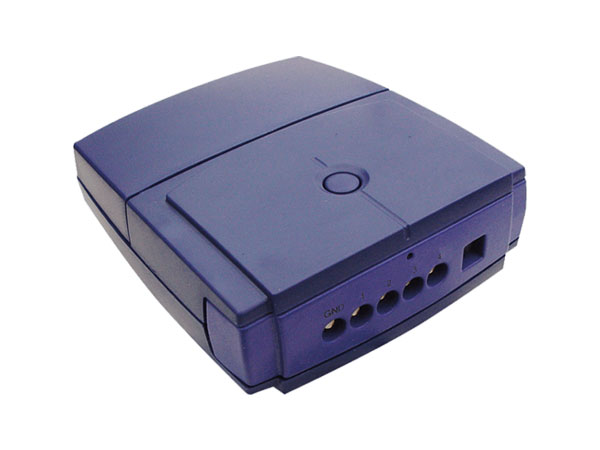

The Mobi system
Mobi系統
Compact, Complete freedom of movement, no compromise recording
輕巧 , 方便攜帶 , 移動下不影響紀錄
The Mobi system is a multichannel system to measure a variety of (electro)-physiological signals in the field of human movement sciences, rehabilitation, ergonomics, sports and telemedicine.
Mobi系統是一個多通道系統,以測量在運動人體科學,復原,人體工程學,運動和遠程醫療領域的各種(電)生理信號。
The flexible and modular concept of the Mobi offers a wide range of configurations and user definable measurements. For example EMG, EEG, ECG, position, force, movements, temperature, respiration and a lot of other parameters can be measured. It can further be configured with a digital input for SpO2.
Mobi靈活和模塊化的概念,提供了一個廣泛的配置和使用者可定義的測量。例如肌電圖,腦電圖,心電圖,位置,力量,運動,溫度,呼吸和很多其他參數。它也可以進一步設定血氧飽和度。
The design of the Mobi integrates the true DC reference amplifier. The active shielding guarantees optimal signal quality, no mains or other interference and no movement artefacts.
Mobi的設計集成了真正的直流校正放大器。自動屏蔽,保證最佳的信號品質,沒有電源或其他干擾,沒有動作電赫干擾。
The Mobi is designed for ambulatory measurements, but can be used stationary as well. In stationary use, the data is directly sent to a PC by BlueTooth wireless telemetry. Thus the user has optimal freedom during the measurement. And of course it is possible to store the data locally on a flash disk up to 1 Gbyte.
Mobi門診測量而設計上。可固定安裝使用,數據透過藍牙無線遙控或傳送到資料至PC。因此,使用者在測量過程中的更加自由。暫存硬碟容量可達1 GB。
In telemedicine applications it is even possible to send the data by BlueTooth to a mobile phone, and via the internet directly to the research centre or the hospital.
在遠程醫療應用,它甚至可以通過藍牙發送到手機上的數據,並通過網際網路發送至研究中心或醫院。
The Mobi is carried in a pouch on the subject's belt and powered by only 2 AA batteries.
Mobi可放置在受測者的腰帶上的,只需2 AA電池供電。
* no movement artifacts
* from DC to maximum sample frequency
* up to 8 channels
* digital input for SpO2
* 24 hours recording
* up to 1 Gbyte internal storage
* Bluetooth® telemetry
* 沒有動作電赫干擾
* 直流高取樣率
* 多至8個頻道
* 數位輸入的血氧飽和度
* 24 小時紀錄
* 高達 1 G 的內部儲存
* 藍芽 ® 遙測
